Membrane bioreactors ─ the holistic solution for wastewater treatment and reuse

Flexibility and high capacity are the hallmarks of our membrane bioreactor solutions. Alfa Laval MBR membranes provide reliable performance for biological treatment of both municipal and industrial wastewater. Regardless of the dimensions of your tank, we can maximize capacity in your plant with our range of stackable membrane modules in different sizes.

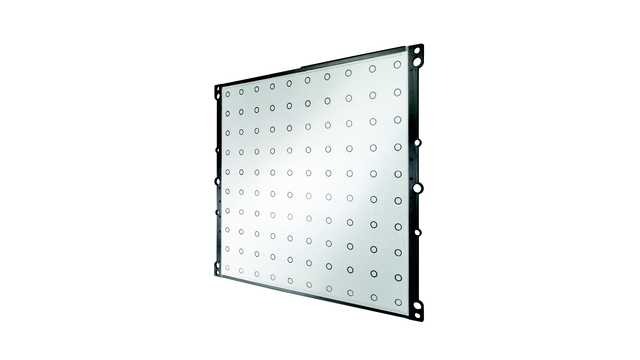

Our unique Hollow Sheet membranes bring together the benefits of flat sheet and hollow fibre membranes, and every detail in our MBR membranes has been specifically designed for the conditions in a wastewater recycling plant. The result is reliable operation and low total lifecycle costs with little needed from your personnel.

Benefits     Technology     Maintenance     References     Contact us

Benefits

The new version of our membrane bioreactor filtration modules features a number of improvements that increase capacity, cut energy consumption and reduce maintenance costs even further.


Excellent water quality

One of the biggest advantages with a membrane bioreactor is the outstanding water quality of the effluent. With regulatory demands becoming stricter and stricter, you can rest assured that you have a future-proof solution when you invest in MBR membrane modules from Alfa Laval.

The membrane is an absolute, physical barrier that removes all bacteria and a number of other pathogens, as well as all microplastics.

An MBR system is also a great solution for removing compounds of emerging concern, micropollutants and pharmaceuticals from municipal and hospital wastewater.

We guarantee the treated water has less than 3 mg suspended solids per litre, making it suitable for a number of beneficial re-use applications, for example irrigation.

Alfa Laval MBR membranes are California Title 22-accredited and have been proven totally effective in removing microplastic pollutants in recent studies of a wastewater treatment plant in Denmark. Therefore, you can be sure to meet your future operational needs and those of your local environment.

Low energy costs

Energy is the main cost of operating an MBR plant, making energy efficiency a primary concern. Alfa Laval MBR membranes offer market-leading performance at the lowest possible energy cost.

The unique LowResist™ design of our MBR membranes makes it possible to operate them using gravity as the only driving force, eliminating costs for pumping power.

Alfa Laval’s new S Aerator™ lets you optimize air scouring, and in turn the energy consumption for the air blower, without risking increased blockages in the aerator or increased membrane fouling.


Minimal cleaning

The ultra-low trans-membrane pressure (TMP) that is the foundation of the LowResist membrane module technology minimizes fouling and in turn cleaning needs. The low TMP eliminates pore fouling which means the only cleaning an Alfa Laval MBR filter ever needs is relaxation/air scouring every 10 minutes and CIP 4-6 times per year.

 In other words:

  • No backflushing
  • No chemically enhanced backwashing
  • No need to ever remove the filter module from the tank during its lifetime
  • Minimal CIP
  • Minimal use of chemicals
  • Huge time savings
  • Less wear and tear on membranes and pumps

Easy, reliable operation

Every detail of an Alfa Laval MBR membrane system, , has been designed and manufactured specifically for use in wastewater applications. There are no moving parts or valves in the sludge, and pump usage has been minimized. Nothing has been left to chance to secure maximum reliability and the lowest possible maintenance requirements.

There is no maintenance that will ever require you to remove the filter module from the bioreactor tank or to empty it. In case you need to replace a membrane, our unique QuickSwap system lets you do this in record time in the membrane tank. Read more about QuickSwap on our Technology page

No advanced training for your personnel is required if you are revamping an existing wastewater treatment plant to MBR technology. All the technologies in our system will be familiar to your staff.

MBR Water cascading at waterwork_MedRes.jpg

CAPEX

One of the biggest advantages with a membrane bioreactor is the outstanding water quality. In times when regulatory demands are becoming more and more strict you can be rest assured that you have a future-proof solution when you invest in an MBR filtration system from Alfa Laval.

The membrane is an absolute, physical barrier that removes 100 % of all bacteria and a number of other pathogens, as well as all microplastics.

An MBR system is also a great solution for removing compounds of emerging concern, micropollutants and pharmaceuticals from municipal and hospital wastewater.

We guarantee the treated water has less than 3 mg suspended solids per litre, making it useable for a number of beneficial re-use applications, for example irrigation.

Alfa Laval MBR membranes are Title 22 accredited and have been proven to be totally effective in removing microplastic pollutants in recent studies on a wastewater treatment plant in Denmark. Therefore, you can be sure that your future needs and those of your local environment, are met.

Low investment cost

Alfa Laval MBR membranes offer maximum capacity in any available space. Regardless if you are building a new plant or upgrading an existing one, you will see that our solutions reduce capital expenditure (CAPEX).

New plants

For new plants, you can save greatly on civil works by choosing Alfa Laval. The size of the tank can be smaller than for other MBR systems thanks to the high membrane density and ability to operate with a higher concentration of suspended solids. An Alfa Laval system can operate with up to 50% higher solids concentration than hollow fibre solutions, making it possible to use a smaller tank.

And with an Alfa Laval system, you don’t need to install pumps for sludge recirculation. We do this using air lift, meaning that the scouring air circulates the sludge. You will also save on pumps and piping thanks to the simplicity of the design of an Alfa Laval MBR membrane. Since the system can operate with gravity as the driving force, the CIP pump is the only pump you need.

Existing plants

For existing plants, the great flexibility of our MBR filtration system makes it possible to tailor it to any existing infrastructure. You can choose if you wish to let gravity drive the system or use low-energy permeate pumps. With our range of membrane modules in different sizes, we can pack maximum membrane capacity into your existing tank(s).


Technology

Nature is full of examples of smart, efficient processes, and we have been inspired by a number of them when designing our MBR modules. This has been very successful, resulting in low energy costs, minimal cleaning and high water quality. We gradually develop our systems to improve them even further, always with the same guiding principle: natural efficiency.

LowResist™

Alfa Laval’s unique LowResist design gives our membrane module an extremely low pressure drop. It is thanks to the ultra-low transmembrane pressure (TMP) that Alfa Laval MBR membranes require much less cleaning and maintenance that other MBRs on the market. The low TMP means there is no pore fouling, just easily removed surface fouling.

It is also the reason Alfa Laval MBR filters can run on gravity with just 1 m of water above the module, making it possible to maximize capacity in a tank without having to use pumps.

In our new model we have improved the LowResist technology to reduce the transmembrane pressure even further. The new membranes have open sides, allowing the water to flow freely into the permeate boxes. This leads to a more even pressure distribution over the membrane, which improves capacity and reduces cleaning needs.

S Aerator™

Our latest MBR model features the S Aerator aeration system. This new, improved system minimizes air consumption and eliminates the work of cleaning out blockages.

Blockages are a hassle in traditional, multi-line aeration systems. Cleaning and restarting them is a cumbersome, time consuming process.

Alfa Laval’s new S Aerator uses a single-line design, making it self-flushing. Any blockages are automatically flushed out when the air pressure builds up. Water that has entered the system due to the blockage is also flushed out automatically, meaning there is no need for manual intervention at any stage.

The self-flushing design makes it easy to turn the air on and off during operation and allows you to run your membrane modules with alternating aeration. This means that in systems with more than one membrane module, air scouring is applied in an alternating manner, not continuously. This is possible without fouling becoming a problem thanks to the extremely low TMP. The big benefit is savings in energy, investment and maintenance costs.

The end of the aeration line is a vertical pipe open at the bottom. This design lets you clearly see if you are over-aerating your bioreactor. Any bubbles from the end pipe indicate that the system is receiving too much air.

Alfa Laval MBR S-Aerator Wastewater Treatment.jpg
Alfa Laval MBR QuickSwap.JPG

QuickSwap™

Membranes are easily installed and replaced thanks to Alfa Laval’s unique QuickSwap™ technology. Alfa Laval’s unique QuickSwap™ technology means each pack can be removed individually, minimizing the lifting height required above the membrane module. This means that Alfa Laval’s MBR membrane modules are especially suitable for indoor or subterranean installations where extra lifting height means more capital cost.

Membranes are easily replaced thanks to the QuickSwap™ technology. With all of the membranes in a module mounted in packs, an entire pack can be replaced in one operation, instead of having to replace each membrane element individually.

To replace a pack, just lower the tank level, take out the old pack and put in a new one. There is no need to take the entire module out of the tank or spend time ensuring each membrane element is in place after replacing the membranes.

Optimized for high capacity

The new Alfa Laval MBR membrane modules only require two free sides during operation and can therefore be installed side by side in rows, thereby increasing the installed membrane density dramatically.

The range of different module sizes in combination with the low water depth required for gravity operation makes it possible to optimize usage of existing tanks and maximize the installed membrane area. With Alfa Laval’s solution you get the most membrane area per tank volume.

The high resistance to fouling and absence of pore fouling in an Alfa Laval MBR membrane makes it possible to operate the bioreactor with up to 50% higher concentrations of suspended solids than other manufacturers’ filters.

Combining these factors means you get maximum capacity per tank volume with Alfa Laval MBR membranes.

Alfa Laval MBR high capacity.JPG
Alfa Laval MBR membranes.png

Membranes ─ designed for wastewater applications

The membranes are a key part of a MBR wastewater treatment plant. We develop and manufacture all membranes used in our MBR modules ourselves to ensure the highest quality and best durability. The membranes are made of chlorine resistant PVDF and have been specifically optimized for use in wastewater applications.

The membranes provide an absolute barrier to bacteria, microplastics and several other pollutants, and the treated water is guaranteed to contain less than 3 mg suspended solids per litre.

Fully automated for low personnel requirements

Alfa Laval MBR membranes are easy to operate and can be fully automated. All important aspects, such as air scouring, cycle lengths and CIP can be initiated, controlled and monitored remotely. The only required manual work is making sure the cleaning chemical tanks are filled.

The resulting personnel requirements are thus very low, normally around 1/4 full-time operator equivalent per plant.


MBR case stories

There are over 150 Alfa Laval MBR systems installed across the world, handling all types of municipal and industrial wastewater.

Schwander Polska chooses Alfa Laval MBR for low lifecycle costs

The company Schwander Polska designs, builds and operates wastewater plants based on MBR technology. To ensure long and trouble-free uptime at minimum operating cost, the company has decided to use Alfa Laval MBR membranes in all of their projects.

Alfa Laval MBR maximizes flexibility and effluent quality at KMC

Potato starch producer KMC processes wastewater with 10,000 mg COD/L  in its wastewater treatment plant. Thanks to Alfa Laval’s MBR membranes, the company has the flexibility to use the most suitable bacteria in its bioreactors and can meet the municipality’s demands on effluent quality.
