Revos concentration system

Alfa Laval Revos™ concentration system uses high-pressure, low-temperature reverse-osmosis technology to remove water from beer, wine and cider after fermentation to produce a quality concentrate with up to 22% alcohol by volume (ABV). When rehydrated it has the same taste, aroma, minerals and alcohol content as the original product.

啤酒浓缩设备

Compact, economical and energy-efficient beer and beverage concentration system

  • Up to 80% lower transport costs due to reduced concentrate shipping volumes for rehydration at bulk packaging facilities or at points of sale
  • Save valuable floor space at the point of sale, such as bars and restaurants, by rehydrating concentrate only at the time of serving
  • Preserve the flavour, aroma, minerals and alcohol content of the original beer or beverage due to low-temperature, patented two-pass processing
  • Highly versatile system for beer and beverage concentration

Increase beer and beverage stability while reducing distribution and shipping costs with the Alfa Laval Revos concentration system.

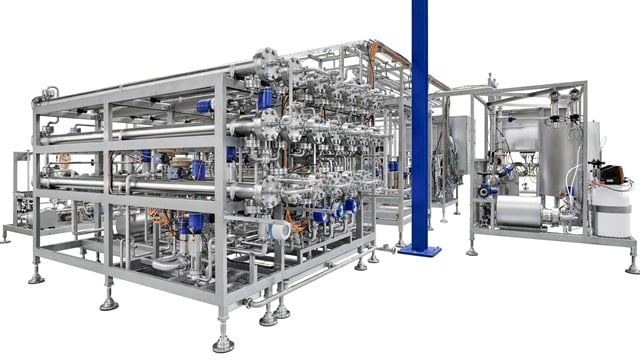

The Revos concentration module is a two-pass high-pressure, low temperature reverse osmosis system, capable of concentrating alcoholic beverages, including beer, wine and cider. The product is chilled, and, in the first pass, pumped across proprietary spiral-wound membranes. At high pressure, water permeates through the membranes, concentrating the product while retaining up 22% alcohol by volume.  Proteins, sugars, aromas and minerals are retained in the beer and beverage concentrate due to the tight pore structure of the membranes. The second pass allows for the recovery and retention of alcohol and aromas that escaped during the first pass of concentration.

.

Key products

Pilot testing and rentals of beer concentration systems

Pilot testing and rentals of beer concentration systems

Test the Alfa Laval Revos concentration system and Re-draft system to determine whether these systems meet your requirements. Send up to 10 hl of your product to the Alfa Laval Revos Innovation Centre in Denmark for onsite testing and performance analysis. A Re-draft system is available for demonstration and testing to rehydrate the concentrate produced.

Alternatively, you can rent a Re-draft system and conduct trials reconstituting your beer concentrate at your facility or in a commercial setting.



Get in touch





.

Service

Food system services

Alfa Laval Food system services help extend the performance of your food systems by maximizing the performance of your processes. This enables you to:

  • Continually improve your operations to maintain competitive advantage
  • Focus on uptime, optimization and availability
  • Maximize return on investment throughout the life cycle of your food systems

Learn more about our service offer

service men with ipad

.

Applications

Q&As Revos concentration system

Find answers to the most frequently asked questions about the Revos beer concentration system here.

cerveza industria ALfa Laval

Curbing carbon emissions - Learn more from our white paper

How can breweries and beverage manufacturing facilities reduce their carbon footprints while making operations more efficient? Reducing direct and indirect emissions plays an important role – from purchasing raw materials, electricity and manufacturing to packaging, materials and distribution. This white paper will focus on reverse osmosis (RO) membrane filtration for beer and beverage concentration as a cost-effective way for manufacturers to reduce the carbon footprint of their supply chains.
