Unique SSSV
Alfa Laval Unique Small Single Seat Valves (SSSVs) are fast-acting pneumatic valves that handle dosing and small flow rates in hygienic applications. Modular and cost-effective, you can easily configure valve bodies, plugs and actuators to meet your requirements for shutoff or diversion. These durable, easy-to-clean seat valves come in ½” and ¾” versions.
Cost-effective hygiene for small flows
- Compact, fast-acting hygienic shutoff or changeover valve
- Low total cost of ownership
- Exceptional valve hygiene and cleanability
- Ideal for dosing and small flow rates
- Long-lasting, modular design
Product catalogue
CAD portal
The Alfa Laval CAD portal is an essential platform for downloading detailed product information, 2D drawings and 3D product models.
Service
Our dedicated Global Service Network supports you with parts and expertise, wherever you are, whenever you need it. By ensuring greater uptime, availability and optimization, we help bring you peace of mind, and maximize your return on investment. We can work with you to integrate our services into an Alfa Laval Service Agreement for predictable and worry-free operations.
Learn more about our service offer Troubleshooting
Serial number search Find a partner
Please contact us with any queries or questions.
Exceptional valve hygiene
Minimize the risk of contamination with the unmatched hygiene of the Alfa Laval Unique SSSV. To safeguard your processes, this small, food-grade single seat valve – like all valves in the Alfa Laval SSV range – has a weld-free body, easy-to-clean plug and double-acting lip seal. Engineered for the dairy, food and beverage and personal care industries, the Unique SSSV is EHEDG-certified, authorized to carry the 3-A symbol and provides full traceability in compliance with the EU Food Regulation 1935/2004.
Cost effective SSSV Valve
Reduce maintenance costs due to the straightforward, hygienic design of the Unique SSSV. Few moving parts and crevice-free surfaces prolong the intervals between Cleaning-in-Place (CIP). A single contact surface between the plug and the seat minimizes the risk of contamination.
Demand hygiene and safety for small flows
Discover how Alfa Laval Unique SSSV small single seat valves will help you raise the standards of hygiene, process safety and durability while lowering the total cost of ownership.
Extend valve service life
Get more uptime due to the high sealing quality and significantly reduced wear of plug, seat and seal on the Alfa Laval Unique SSSV.
Part of a broad valve range
Alfa Laval SSSVs, available in ½” and ¾” sizes, are part of Alfa Laval’s comprehensive range of valves for hygienic applications in various industries including dairy, food, beverage, home care, personal care, biotechnology and pharmaceuticals.
For a broader valve range, explore the different product categories: ball valves, butterfly valves, control/check valves, diaphragm valves, double seal valves, double seat valves, mixproof valves, regulating valves, safety valves, sample valves and shutter valves.
How it works
Operating principle
The Alfa Laval Unique SSSV small single-seat valve is an air-operated seat valve that is remotely operated by means of compressed air or manually operated. It is a small version of the well-known Alfa Laval Unique SSV with a straightforward design and few moving parts.
Construction
The Alfa Laval Unique SSSV range consists of one or two valve bodies, each with two to five ports, plug in PVDF (no elastomer), static sealing, actuator and clamp ring.
Options
- Adapter for Alfa Laval IndiTop, ThinkTop and ThinkTop Basic
- Control and Indication: Alfa Laval IndiTop, ThinkTop or ThinkTop Basic
- Product wetted seals of HNBR or FPM
- Stainless steel seal disc replacing standard lip seal
- Clamp with wing nut
- Clamp connection

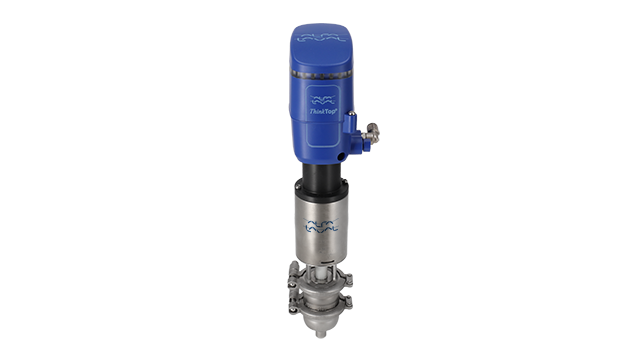

Save water with ThinkTop
Do something good for the environment and save up to 95% in CIP liquid when cleaning your valves. Innovations like ThinkTop sensing and control units make more efficient use of resources while safeguarding process hygiene. Add ThinkTop to your valves to optimize your processes.
360° Service and maintenance videos
Alfa Laval Unique single seat valves - maintainable actuator
Alfa Laval Unique single seat valves – replace actuator bushing
Alfa Laval Unique single seat valves -replace product-wetted seals
Alfa Laval Unique single seat valves – product-wetted seals
