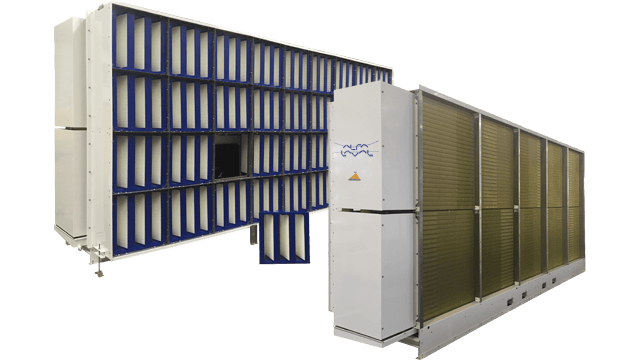

Arctigo LSV

Alfa Laval Arctigo LSV air coolers are heavy duty industrial air coolers specifically designed for cooling down server heat production in data centers that have been built according to “Low Speed Ventilation”. Arctigo LSV air coolers operate with low fan speed, low air velocities and minimal pressure differences along the route of the air flow, achieved by the building itself being part of the system.

  • Documents
  • Related industries
  • Related services



Standard configuration

  • Coil
    - Modular cooler coil with Cu tubing Ø 5/8”
    - Tube pitch 48x48 mm triangular
    - Corrugated aluminium fins
    - Fin spacing 5 mm
  • 1 to 10 energy efficient EC fans, Ø 400 up to 800 mm blowing through the coil. Fans with elevated external pressure. Fan current 230/50/1 or 400/50/3. 16 Pa air-sided pressure drop and a sensible heat factor of 1.0
  • Corrosion-resistant casing: aluminium/sendzimir, white epoxy coated (RAL 9003)
  • Arctigo LSV is based on a flexible design concept. In addition to the standard range, Arctigo LSV air coolers can be fully customized to meet any client specifications.

Options

For a full overview of all available options and additional technical specifications please refer to the product leaflet.

LSV movie

  • Refrigerant: water
  • Capacities: 7.4 - 311 kW
    Models with higher/lower capacities available on request.
  • Air volume: 1,865 - 77,750 m3/h

The LSV system offers the lowest PUE compared to all other data center cooling solutions. Futhermore a significantly higher reliability of the overall system, maintenance reduction in the white space and prevention of nuisances like ‘hot spots’. For more information please visit the LSV website.

Low Speed Ventilation

This product will be configured on order to meet all customer and application requirements. Please contact Alfa Laval for support.

Cold Room Calculator

Mobile app for iOS & Android to calculate the expected heat load for your cold room.
Cold Room Calculator

Find everything you need for your HVAC application in Alfa Laval's HVAC handbook.

Read more

How it works

Alfa Laval finned coil air heat exchangers have been designed to achieve an optimized exchange of thermal energy between air and a refrigerant or fluid. The ‘heart’ of our air heat exchangers is the finned coil, built up from a circuit of interconnected tube serpentines and fins to increase the heat exchanging surface. Thanks to the combination of key design variables (coil materials, coil geometry, casing design, fan type), air units are very versatile heat exchangers with a great variety of applications in many industries. Alfa Laval supplies finned coil air heat exchanger products for a wide variety of applications.

Air coolers & air-cooled condensers

Air coolers and air-cooled condensers are key components in air cooling and airconditioning systems. On the refrigerant side the most common media are a brine or an evaporating refrigerant like H(C)FC, ammonia or CO2. A chilled brine may be supplied from a chiller that is potentially located far away, but a liquified refrigerant must come from a nearby condensing unit. When an evaporating refrigerant is used, the cooling coil is the evaporator in the vapour-compression refrigeration cycle (‘direct expansion’ or ‘DX’ system).
