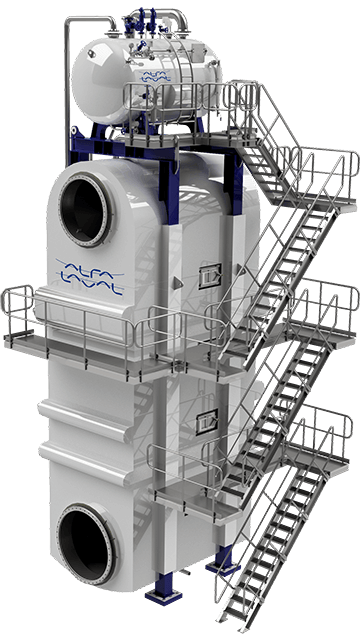

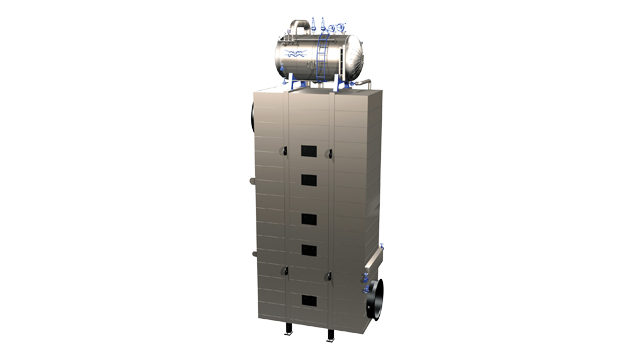

Aalborg AV-6N is a robust and highly efficient boiler with gilled water tubes which is designed to improve a plant’s overall efficiency by maximizing exhaust gas heat recovery. It is intended for steam and/or hot water production.
Aalborg AV-6N boiler is constucted to recover heat from diesel engines, gas engines or other sources.
The boiler’s compact and flexible design, which makes it easy to install, also allows cleaning during operation, which minimizes engine shutdowns and increases plant availability.
Natural circulation is used in the standard steam configuration with resulting advantages for reliability, safety and energy efficiency, although traditional forced-circulation models are available if specifically requested.
Designed with extended heating surface, AV-6N is compact and cost-effective. The possibility of cleaning during operation minimises the need for engine shutdowns and increases the overall plant availability.
Customer benefits with AV-6N
Proven design based on hundreds of operating references
High efficiency; less CO2 emission
Natural circulation; high availability, low operational and maintenance costs
Easy to clean
Compact heating surface, optimisable for different applications
Small footprint and lightweight
Small water volume inside the boiler allows it to respond quickly to load changes
Freedom of scope; shop-assembled, or with maximised scope for local outsourcing (e.g., insulations, platforms, inter-connecting pipes, pre-installation of components etc.)
Standardised cost-effective supply concept with short delivery time
- Tailor-made for specific requirements
- Engine output: No limit, depending on engine
- Engine fuel type: Light oil, liquid biofuel, heavy fuel oil, natural gas
- Exhaust gas flow: No limits
- Exhaust gas temp.:Standard up to 530 ºC
- Operating steam/water pressure: Typically 5-30 bar(g), max. 65 bar(g)
- Steam/water temperature:Standard up to 400 ºC
- Natural circulation as standard - forced on special demand
- Pinch point: Typical 15 - 20 ºC
How it works
Unique boiler construction
A unique supporting arrangement without endplates - enhanced by computerised analyses - ensures a vibration and thermal stress-free boiler structure sustaining even the most demanding operational conditions of engine-based heat recovery applications.
Reliable natural circulation
As a standard for steam applications, Alfa Laval Aalborg offers reliable natural circulation solutions without the need of circulation pumps providing the following advantages:
Minimised risk of sootfires
Less power consumption
Fast site installation
Reduced foundation work and minimized piping and cabling
Traditional forced circulation boilers are also available.
Easy to clean
The tube arrangement of the AV-6N heating surface ensures easy maintenance and service. AV-6N boilers can be cleaned during operation reducing the need for engine shut-down. In addition to standard high-efficient steam soot blowers, an air-type can also be applied.
Hot-water heating for free
The AV-6H exhaust gas boiler is a water tube boiler for heat recovery, typically after gas engine. The boiler comes in a horisontal layout and compact workshop assembled module. It is easy and fast to install while allowing maximized access for convenient maintenance and service.
High-efficient counterflow design for heating of hot water
Proven design to ensure effective and fast cleaning of condensed lube oil residuals (in gas engine application)
Compact and flexible layout with integrated walkable service area
Low operational weight
- Minimized gas pockets
